Multi Firmware Update Version Display

OcNOS now integrates the Multi Firmware Update (MFU) version for UfiSpace switches into the existing show system-information board-info command. The MFU version displayed in the show output matches the vendor's MFU version and lists firmware details, including ONIE, BMC, CPLD, and BIOS versions.

This enhancement enables quick verification of board firmware versions from the CLI, eliminating the need to cross-check vendor MFU versions.

For more information, refer to the show system-information board-info command in the OcNOS System Management Guide, Release 7.0.0.

Transceivers

OcNOS supports the following transceivers and amplifiers:

Smartoptics IPI-SO-TD8002-S31C-SO

The QSFP-DD 800G 2xDR4 transceiver (IPI-SO-TD8002-S31C-SO) supports 800Gbps Ethernet in data centers, with a reach of up to 500m over single-mode fiber. It features two MPO-12 connectors, supports various electrical interfaces (800GAUI-8, 2x400GAUI-4, 8x100GAUI-1), and complies with CMIS 5.0 for digital diagnostics. The transceiver consumes less than 14W, and operates from 0°C to +70°C. It supports aggregate line rates for 800Gbps, 2x400GbE, and 8x100GbE configurations.

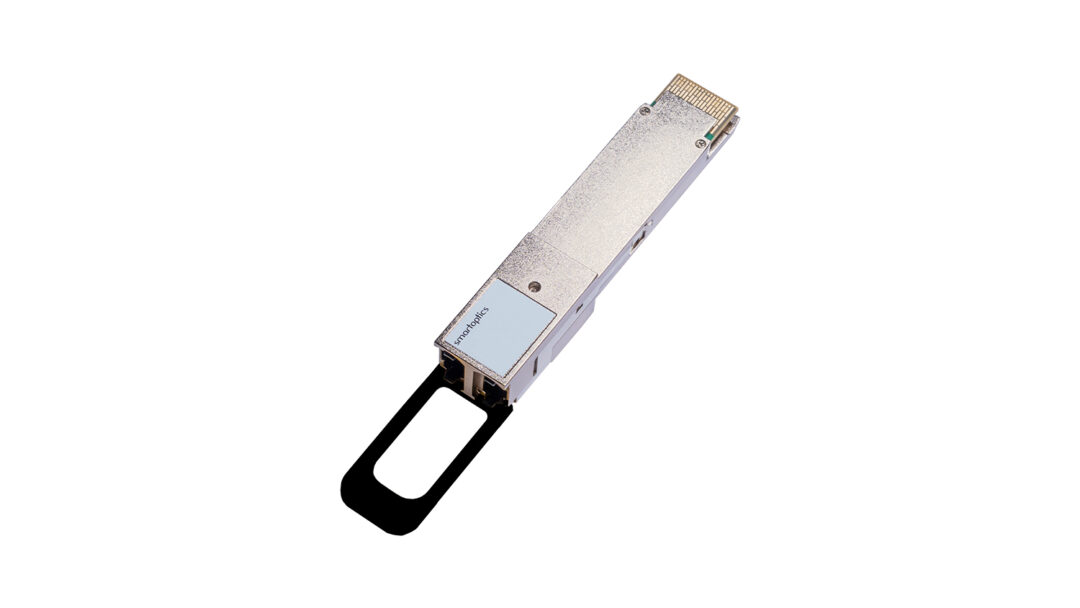

Figure 1. QSFP-DD800 800G-2xDR4 SM Transceiver

ATOP IPI-AT-APQD85KCDMS8C

The ATOP IPI-AT-APQD85KCDMS8C is an 800Gb/s QSFP-DD SR8 optical transceiver. It is designed for 50m OM4/OM5 optical communication, converting 8 channels of 100Gb/s (PAM4) electrical input to 8 parallel 100Gb/s optical signals, and vice-versa, for an aggregate data rate of 800Gb/s. It supports 800GBASE-SR8 and 2x400GBASE-SR4 applications and has an MPO16 connector. Power consumption is less than 15W.

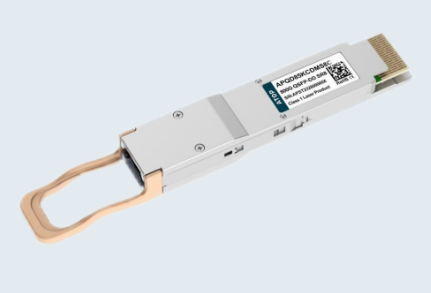

Figure 2. 800G QSFP-DD SR8 Transceiver

E.C.I.Networks IPI-EN-QDD800-2LR4-2CS

The IPI-EN-QDD800-2LR4-2CS is an 800G QSFP-DD 2xLR4 transceiver from E.C.I. NETWORKS, supporting up to 10km transmission on single-mode fiber with duplex LC connector. It handles 8-channel 106.25Gb/s (PAM4) electrical data, converting it into 8-channel 106.25Gb/s optical signals for an aggregated 800G optical transmission. It is specifically designed for 2x400GBASE-LR4 applications, with each lane operating at a signaling rate of 53.125 GBd. Power consumption is less than 16W.

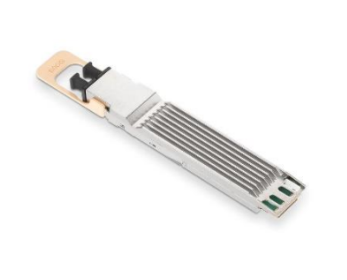

Figure 3. 800G QSFP-DD 2xLR4 Transceiver

E.C.I.Networks IPI-EN-QDD800DAC-xM

The IPI-EN-QDD800DAC-xM is an 800G QSFP-DD Passive DAC TWINAX Cable that provides a high-speed, cost-effective, and power-efficient alternative to fiber optics for short-distance interconnects in data centers and high-performance computing. It supports an aggregate data rate of 800Gbps (PAM4) over 16 copper pairs, with each lane operating up to 100Gb/s. The cable is powered by a 3.3V supply and is compliant with the IEEE 802.3ck 800G Ethernet standard.

Accelink IPI-AL-RTXM600-411

The 800G QSFP-DD800 2x400G FR4 Transceiver (IPI-AL-RTXM600-411) supports up to 106.25Gbps data rate per channel via PAM4 modulation, enabling 800GBASE 2x400G FR4 Ethernet over 2km of single-mode fiber with dual duplex LC connectors. Each lane operates at a signaling rate of 53.125 GBd. Power consumption is less than 14W.

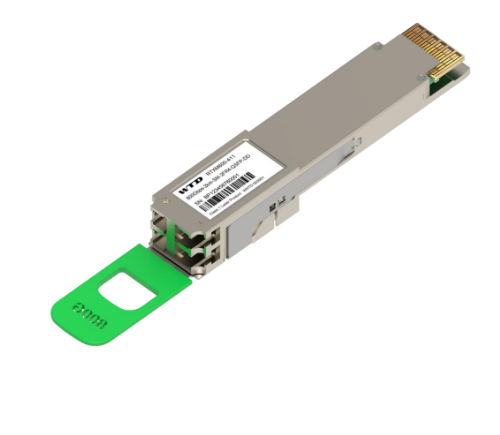

Figure 4. 800G QSFP-DD800 2×400G FR4 Transceiver

Accelink IPI-AL-RTXM600-2004

The Accelink IPI-AL-RTXM600-2004 is an 800G OSFP Closed TOP DR8 Transceiver with an MPO16 connector, designed for 800GBASE-DR8 Ethernet applications and data centers. It supports data rates up to 106.25 Gbps per channel (PAM4 modulation) across 8 duplex channels over single-mode fiber with a maximum link length of 500m. The selectable data rates are 106.25 Gbps and 53.125 Gbps, with a signaling rate of 53.125 GBd per lane. Power consumption is less than 16W.

Figure 5. 800G OSFP Closed TOP DR8 Transceiver

Accelink IPI-AL-RTXM-600-2001

The Accelink 800G OSFP DR8 Transceiver (IPI-AL-RTXM-600-2001) with dual-LC connector, is designed for 800GBASE-DR8 Ethernet applications and data centers. It transmits and receives serial optical data links at up to 106.25 Gbps per channel (PAM4 modulation) over single-mode fiber. The module's signaling rate is 53.125 GBd. Power consumption is less than 16W.

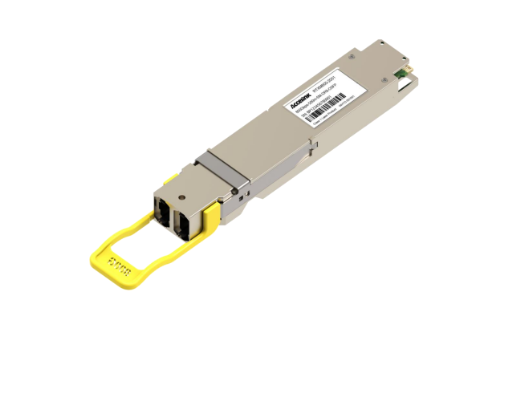

Figure 6. 800G OSFP DR8 Transceiver

Smartoptics IPI-SO-TQ2031-TUNC-SO

The IPI-SO-TQ2031-TUNC-SO is a high-performance 100G ZR QSFP28 Coherent transceiver. Supporting a 103.12Gbps bit rate via a CAUI-4 (4x25G NRZ) electrical interface, this HP CMIS-compliant module offers versatile long-haul capabilities, reaching up to 120km natively and extending to 300km with amplification.

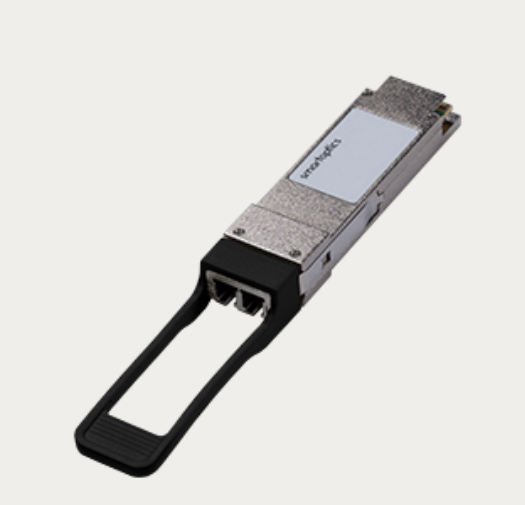

Figure 7. QSFP28 100G Coherent DWDM 120km Transceiver

Smartoptics IPI-SO-TQ2025-TUNC-SO

The IPI-SO-TQ2025-TUNC-SO is a QSFP28 DWDM transceiver for 100GbE and OTU4 applications with CMIS5.2 and C-CMIS1.2 compliant interface, supporting unamplified reach up to 80km and amplified reach up to 300km. It transmits at a bit rate of 103.12Gbps by splitting the 100Gbps signal into four parallel 25Gbps NRZ electrical streams (CAUI-4). Power consumption is less than 5.5W.

Figure 8. QSFP28 100G Coherent DWDM 80km Transceiver

Smartoptics IPI-SO-TOC003-SC4C-SO

The IPI-SO-TOC003-SC4C-SO is an OSFP112 form-factor transceiver designed for 800Gbps or 2x400G Ethernet applications, compliant with CMIS 5.0. It is intended for use in data center interconnects between switches, routers, and storage equipment, supporting optical distances up to 2km over single-mode fiber (SMF). The electrical interface consists of eight 106.25G signals (800GAUI-8) converted to eight PAM4-modulated channels, while also supporting 2x400GAUI-4 and 2x200GAUI-4 breakout modes. The optical interface features two duplex LC connectors, enabling the aggregation of two 400G-FR4 transceivers. Power consumption for this module is less than 14W.

Figure 9. OSFP112 800G Coherent DWDM 2km Transceiver

Smartoptics IPI-SO-TOC004-SC4C-SO

The IPI-SO-TOC004-SC4C-SO is an OSFP112 form-factor transceiver for 800Gbps or 2x400G Ethernet applications with a CMIS5.0 compliant interface, supporting optical distances up to 10km over single-mode fiber. It transmits at an aggregated bit rate of 800Gbps by converting eight 106.25G electrical signals (800GAUI-8) into eight PAM4-modulated optical channels. The transceiver features two duplex LC connectors and can be configured in 2x400GAUI-4 mode to enable breakout configurations. Power consumption is less than 14W.

Figure 10. OSFP112 800G Coherent DWDM 10km Transceiver

Smartoptics IPI-SO-DOC001-003C-SO

The IPI-SO-DOC001-003C-SO is an OSFP800 Active Electrical Cable (AEC) designed for 800Gbps Ethernet applications, providing a reliable solution for high-density connections within and across adjacent racks. It features a 3-meter reach using AWG32 cabling and is equipped with a CMIS 5.0 compliant management interface.

For more information about the transceivers, contact the IPI sales team.
