NTP Client Configuration with IPv6 Address
NTP client, user can configure an association with a remote server. In this mode the client clock can synchronize to the remote server.
Topology

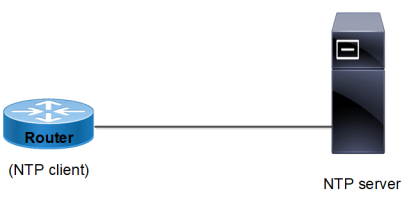

Figure 36. NTP Client topology
Configuration of VRF Management
|
#configure terminal |
Enter configure mode |
|
(config)#feature ntp vrf management |
Configure feature on default or management VRF |
|
(config)# ntp enable vrf management |
This feature enables NTP. This will be enabled in default. |
|
(config)#ntp server 2001::1 vrf management |
Configure NTP server IP address. |
|
(config)#commit |
Commit the configuration |
|
(config)#exit |
Exit from the Configure Mode. |
Validation
#show ntp peers
================================================
Peer IP Address Serv/Peer
================================================
2001::1 Server (configured)
#show ntp peer-status
Total peers : 1
* - selected for sync, + - peer mode(active),
- - peer mode(passive), = - polled in client mode
Remote refid st when poll reach delay offset jitter ==============================================================================
*2001::1 LOCAL(0) 7 u 14 32 37 0.194 -4.870 3.314 Configuration of User Defined VRF
|
#configure terminal |
Enter configure mode |
|
(config)#feature ntp vrf vrf1 |
Configure feature on default or management VRF. By default this feature runs on management VRF. |
|
(config)# ntp enable vrf vrf1 |
This feature enables NTP. This will be enabled in default. |
|
(config)#ntp server 2001::1 vrf vrf1 |
Configure NTP server IP address. |
|
(config)#commit |
Commit the configuration |
|
(config)#exit |
Exit from the Configure Mode. |
Validation
#show ntp peers
================================================
Peer IP Address Serv/Peer
================================================
2001::1 Server (configured)
#show ntp peer-status
Total peers : 1
* - selected for sync, + - peer mode(active),
- - peer mode(passive), = - polled in client mode
Remote refid st when poll reach delay offset jitter ==============================================================================
*2001::1 LOCAL(0) 7 u 14 32 37 0.194 -4.870 3.314
