sFlow Sample Packet Ingress and Egress Interface

Overview

This section provides information on sFlow Sample Packet Ingress and Egress Interface Indexes.

sFlow provides a view of the traffic by taking periodic snapshots of packets which helps in identifying the exact source and destination of the packets. While the packet header describes the data, the input and output port provides the context on where the data originated and where it is headed within the switch fabric.

Feature Characteristics

•

Helps to know the physical or logical path taken by the packets through the distribution layers.

•

Input Port: Identifies the ingress interface where the packet entered the device.

•

Output Port: Identifies the egress interface where the packet was switched or routed.

Feature Benefits

•

Traffic path validation provides a bridge between the logical packet and the physical infrastructure.

•

Detection of bottlenecks aids in identifying traffic hotspots.

•

Entry port detection helps to trace any malicious traffic at the specific physical or logical port.

sFlow - Ingress and Egress Interfaces Topologies

The following figures illustrate sFlow sampling mechanisms, detailing how output interfaces are reported during ingress flow sampling and how input interfaces are identified during egress flow sampling to ensure complete topology coverage.

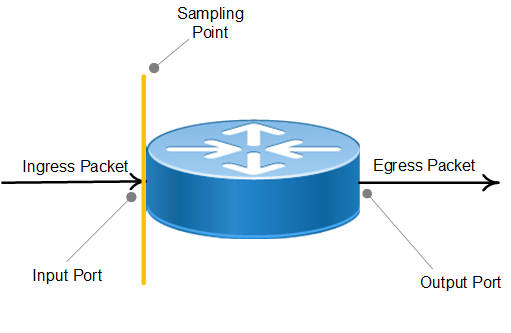

Output Interface Reporting during Ingress Flow Sampling

Figure 48. Output Port Report during Ingress Flow Sampling

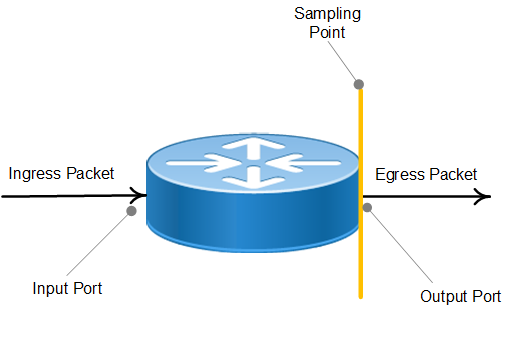

Input Interface Reporting during Egress Flow Sampling

Figure 49. Input Port Report during Egress Flow Sampling

Connection Type and Interface Index Mapping

Table 46. Connection Type and Interface Index Mapping

Connection Type	Packet Direction	Interface Index
VLAN	Ingress	L2 interface index
	Egress	L2 interface index
L3 interface	Ingress	L3 interface index
	Egress	L3 interface index
Dynamic/Static LAG	Ingress	PO/SA interface index
	Egress	PO/SA interface index
VPNv4 (l3VPN)	Ingress	L3 interface Index
	Egress	L3 interface Index
Sub-interface	Ingress	Parent interface’s index
	Egress	Parent interface’s index
VxLAN	Ingress	L3 interface index
	Egress	L3 interface index

Usage Example

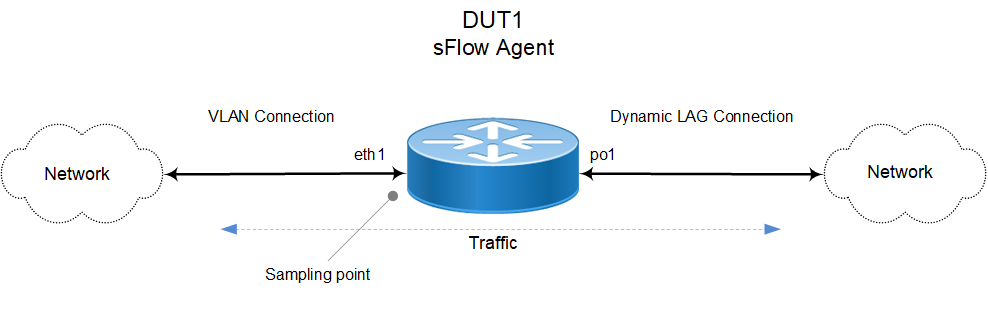

Consider the following scenario with the sampling point configured on eth1:

Sampling Direction Ingress configuration:

Ingress Connection Type = VLAN

Packet Direction = Ingress

Interface Index = L2 interface index (sampled input port)

Egress Connection Type = Dynamic LAG

Packet Direction = Egress

Interface Index= PO/SA interface index (sampled output port)

Sampling Direction Egress configuration:

Ingress Connection Type = Dynamic LAG

Packet Direction = Ingress

Interface Index = PO/SA interface index (sampled input port)

Egress Connection Type = VLAN

Packet Direction = Egress

Interface Index= L2 interface index (sampled output port)

Input/Output Interface Encoding

The following table describes the encoding formats of the sFlow interface. It defines how the interface information is reported based on whether a packet is successfully forwarded through a single interface, discarded in the pipeline, or replicated to multiple destinations.

Table 47. Input/Output Interface Encoding

Format Types	Applicability	Comments
0 - Single Interface	Ingress and Egress Interface	The value is the ifindex of the interface. The value 0x3FFFFFFF indicates that the destination interface is the CPU or that the packet was injected by the CPU (source interface).
1 - Packet Discarded*	Ingress Interface	Packet identified to be sampled, but dropped in the ingress pipeline.
2 - Multiple Destination Interfaces	Ingress Interface	Number of packet copies made.

* sFlow reporting of packets dropped in OcNOS is not supported.
