EVPN MPLS Active-Standby MultiHoming Configuration

This section illustrates the Multi-Homed setup for the EVPN MPLS Active-Standby configuration, showcasing examples for both ELINE and ELAN services with LDP as the underlay MPLS path.

EVPN MPLS Active-Standby MH Topology

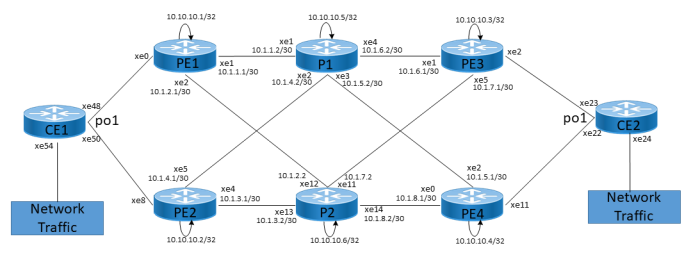

The below topology consists of customer edge routers CE1 and CE2, along with IPv4 Provider Edge routers PE1, PE2, PE3, and PE4, all interconnected through the core routers P1 and P2 in the IPv4 MPLS provider network.

Figure 8. EVPN MPLS AS MH Configuration
