EVPN MPLS Multihoming
Topology

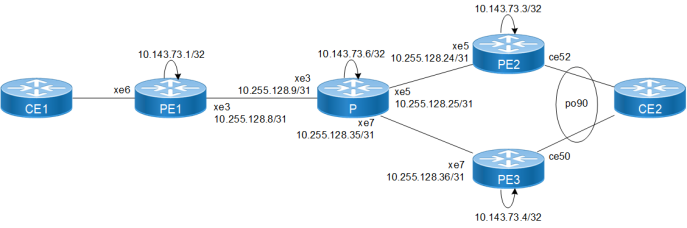

The diagram depicts the Multi Homed topology for the EVPN MPLS configuration examples that follow.
Figure 4. MPLS EVPN multi-homing configuration
PE1: Loopback Interface
|
#configure terminal |
Enter configure mode. |
|
(config)#interface lo |
Enter the Interface mode for the loopback interface. |
|
(config-if)#ip address 10.143.73.1/32 secondary |
Configure IP address on loopback interface. |
|
(config-if)#exit |
Exit interface mode |
|
(config-if)#commit |
Commit the transaction. |
PE1: Global LDP
|
(config)#router ldp |
Enter the Router LDP mode. |
|
(config-router)#router-id 10.143.73.1 |
Set the router ID to IP address 10.143.73.1 |
|
(config-router)#transport-address ipv4 10.143.73.1 |
Configure the transport address for IPV4 (for IPV6 use ipv6) to be used for a TCP session over which LDP will run. It is preferable to use the loopback address as the transport address. |
|
(config-router)#targeted-peer ipv4 10.143.73.3 |
Configure targeted peer |
|
(config-router)#targeted-peer ipv4 10.143.73.4 |
Configure targeted peer |
|
(config-router-targeted-peer)#exit |
Exit-targeted-peer-mode |
|
(config-router)#exit |
Exit from router target peer and LDP mode |
|
(config-router)#commit |
Commit the transaction |
PE1: Global EVPN MPLS Command
|
(config)#evpn mpls enable |
Enable EVPN MPLS |
|
(config)#commit |
Commit candidate configuration to be running configuration |
|
(config)#evpn mpls vtep-ip-global 10.143.73.1 |
Configuring VTEP global IP to loopback IP |
|
(config)#hardware-profile filter evpn-mpls-mh enable |
Enable hardware-profile filter EVPN-MPLS-MH |
|
(config)#evpn mpls multihoming enable |
Enable Multihoming |
|
(config)#commit |
Commit the transaction |
PE1: Interface Configuration Network Side
|
(config)#interface xe3 |
Enter the Interface mode for xe3 |
|
(config-if)#ip address 10.255.128.8/31 |
Configure IP address on the interface |
|
(config-if)#enable-ldp ipv4 |
Enable LDP on the physical interface |
|
(config-if)#label-switching |
Enable label switching on the interface |
|
(config-if)#exit |
Exit interface mode |
|
(config-if)#commit |
Commit the transaction |
For RSVP Configuration RSVP-TE ConfigurationRSVP-TE Configuration
PE1: OSPF Configuration
|
(config)#router ospf 100 |
Enter the Router OSPF mode |
|
(config-router)#ospf router-id 10.143.73.1 |
Router-ID configurations |
|
(config-router)#network 10.143.73.1/32 area 0.0.0.0 |
Advertise loopback address in OSPF |
|
(config-router)#network 10.255.128.8/31 area 0.0.0.0 |
Advertise network address in OSPF |
|
(config-router)#exit |
Exit Router OSPF mode and return to Configure mode |
|
(config)#commit |
Commit the transaction |
PE1: BGP Configuration
|
(config)#router bgp 65010 |
Enter the Router BGP mode, ASN: 65010 |
|
(config-router)#neighbor 10.143.73.3 remote-as 65010 |
Configuring Neighbor as iBGP neighbor |
|
(config-router)#neighbor 10.143.73.3 update-source lo |
Source of routing updates as loopback |
|
(config-router)#neighbor 10.143.73.4 remote-as 65010 |
Configuring Neighbor as iBGP neighbor |
|
(config-router)#neighbor 10.143.73.4 update-source lo |
Source of routing updates as loopback |
|
(config-router)#address-family l2vpn evpn |
Entering into address family mode as EVPN |
|
(config-router-af)#neighbor 10.143.73.3 activate |
Enabling EVPN Address family for neighbor |
|
(config-router-af)#neighbor 10.143.73.4 activate |
Enabling EVPN Address family for neighbor |
|
(config-router-af)#exit |
Exiting of Address family mode |
|
(config-router)#commit |
Commit the transaction |
PE1: MAC VRF Configuration
|
(config)#mac vrf vrf2 |
Enter VRF mode |
|
(config-vrf)#rd 10.143.73.1:1700 |
Configuring Route-Distinguisher value 10.143.73.1:1700 |
|
(config-vrf)#route-target both 1700:1700 |
Configuring import and export value as 1700:1700 |
|
(config-vrf)#exit |
Exiting VRF Mode |
|
(config)#mac vrf vpls1001 |
Enter VRF mode |
|
(config-vrf)#rd 10.143.73.1:1001 |
Configuring Route-Distinguisher value 10.143.73.1:1001 |
|
(config-vrf)#route-target both 1001:1001 |
Configuring import and export value as 1001:1001 |
|
(config-vrf)#exit |
Exiting VRF Mode |
|
(config)#commit |
Commit the transaction. |
PE1: EVPN-VPWS (ELINE) and VRF Mapping
|
(config)#evpn mpls id 1700 xconnect target-mpls-id 1800 |
Configure the EVPN-VPWS identifier with source identifier 1700 and target identifier 1800 |
|
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrf2 |
Mapping vrf "vrf2" to EVPN-VPWS identifier |
|
(config-evpn-mpls)#commit |
Commit the transaction. |
|
(config-evpn-mpls)#exit |
Exit the EVPN MPLS mode and return to the configure mode. |
PE1:EVPN-VPWS (ELINE) Access Port Configuration
|
(config)#interface xe6 |
Enter the Interface mode for xe6. |
|
(config-if)#interface xe6.1700 switchport |
Creating L2 sub interface of physical interface xe6. |
|
(config-if)#description access-side-int |
Giving Interface Description |
|
(config-if)#encapsulation dot1q 1700 |
Setting Encapsulation to dot1q with VLAN ID 1700 Supported. Encapsulation: dot1ad, dot1q, untagged, default |
|
(config-if)#access-if-evpn |
Entering Access mode for EVPN MPLS ID configuration. |
|
(config-access-if)#map vpn-id 1700 |
Map vpn-id 1700 to interface xe6.1700 (VPWS). |
|
(config-access-if)#exit |
Exiting out of access interface mode. |
PE1: EVPN-VPLS (ELAN) and VRF Mapping
|
(config)#evpn mpls id 3000 |
Configure the EVPN-VPLS identifier with identifier 3000. |
|
(config-evpn-mpls)#host-reachability-protocol evpn- bgp vpls1001 |
Mapping vrf "vpls1001" to EVPN-VPLS identifier. |
|
(config-evpn-mpls)#commit |
Commit the transaction. |
|
(config-evpn-mpls)#exit |
Exit the EVPN MPLS mode and return to the configure mode. |
PE1: EVPN-VPLS (ELAN) Access Port Configuration
|
(config-if)#interface xe6.300 switchport |
Enter the Interface mode for xe6. |
|
(config-if)#encapsulation dot1q 3000 |
Creating L2 sub interface of physical interface xe6 |
|
(config-if)#access-if-evpn |
Entering Access mode for EVPN MPLS ID configuration |
|
(config-access-if)#map vpn-id 3000 |
Map vpn-id 3000 to interface xe6.3000 (VPLS) |
|
(config-access-if)#commit |
Commit candidate configuration to be running configuration |
P: Loopback Interface
|
#configure terminal |
Enter configure mode |
|
(config)#interface lo |
Enter the Interface mode for the loopback interface |
|
(config-if)#ip address 10.143.73.6/32 secondary |
Configure IP address on loopback interface |
|
(config-if)#exit |
Exit interface mode |
|
(config-if)#commit |
Commit the transaction |
P: Global LDP
|
(config)#router ldp |
Enter the Router LDP mode |
|
(config-router)#router-id 10.143.73.6 |
Set the router ID to IP address 10.143.73.6 |
|
(config-router)#transport-address ipv4 10.143.73.6 |
Configure the transport address for IPV4 (for IPV6 use ipv6) to be used for a TCP session over which LDP will run It is preferable to use the loopback address as the transport address. |
|
(config-router)#exit |
Exit from router target peer and LDP mode |
|
(config-router)#commit |
Commit the transaction |
P: Interface Configuration
|
(config)#interface xe3 |
Enter the Interface mode for xe3 |
|
(config-if)#ip address 10.255.128.9/31 |
Configure IP address on the interface |
|
(config-if)#enable-ldp ipv4 |
Enable LDP on the physical interface |
|
(config-if)#label-switching |
Enable label switching on the interface |
|
(config-if)#exit |
Exit interface mode |
|
(config)#interface xe5 |
Enter the Interface mode for xe5 |
|
(config-if)#ip address 10.255.128.25/31 |
Configure IP address on the interface |
|
(config-if)#enable-ldp ipv4 |
Enable LDP on the physical interface |
|
(config-if)#label-switching |
Enable label switching on the interface |
|
(config-if)#exit |
Exit interface mode |
|
(config)#interface xe7 |
Enter the Interface mode for po92 |
|
(config-if)#enable-ldp ipv4 |
Enable LDP on the physical interface |
|
(config-if)#label-switching |
Enable label switching on the interface |
|
(config-if)#exit |
Exit interface mode |
|
(config)#commit |
Commit the transaction |
P: OSPF Configuration
|
(config)#router ospf 100 |
Enter the Router OSPF mode. |
|
(config-router)#ospf router-id 10.143.73.6 |
Setting the Router ID as Loopback IP |
|
(config-router)#network 10.143.73.6/32 area 0 |
Advertise loopback address in OSPF |
|
(config-router)#network 10.255.128.8/31 area 0.0.0.0 |
Advertise xe3 network address in OSPF that comes under same subnet |
|
(config-router)#network 10.255.128.24/31 area 0.0.0.0 |
Advertise network address in OSPF |
|
(config-router)#network 10.255.128.36/31 area 0.0.0.0 |
Advertise xe7 network address in OSPF that comes under same subnet |
|
(config-router)#exit |
Exit Router OSPF mode and return to Configure mode |
|
OcNOS(config)#commit |
Commit candidate configuration to be running configuration |
PE2: Loopback Interface
|
#configure terminal |
Enter configure mode |
|
(config)#interface lo |
Enter the Interface mode for the loopback interface |
|
(config-if)#ip address 10.143.73.3/32 secondary |
Configure IP address on loopback interface |
|
(config-if)#exit |
Exit interface mode |
|
(config)#commit |
Commit the transaction |
PE2: Global LDP
|
(config)#router ldp |
Enter the Router LDP mode. |
|
(config-router)#router-id 10.143.73.3 |
Set the router ID to IP address 10.143.73.3 |
|
(config-router)#transport-address ipv4 10.143.73.3 |
Configure the transport address for IPV4 (for IPV6 use ipv6) to be used for a TCP session over which LDP will run It is preferable to use the loopback address as the transport address. |
|
(config-router)#targeted-peer ipv4 10.143.73.1 |
Configure targeted peer |
|
(config-router-targeted-peer)# targeted-peer ipv4 10.143.73.4 |
Configure targeted peer |
|
(config-router-targeted-peer)#exit |
Exit-targeted-peer-mode |
|
(config-router)#exit |
Exit from router target peer and LDP mode |
|
(config)#commit |
Commit the transaction |
PE2: Global EVPN MPLS Command
|
(config)#evpn mpls enable |
Enable EVPN MPLS Note: Reload is required after Enabling/Disabling EVPN MPLS Feature |
|
(config)#commit |
Commit candidate configuration to be running configuration |
|
(config)#evpn mpls vtep-ip-global 10.143.73.3 |
Configuring VTEP global IP to loopback IP |
|
(config)#hardware-profile filter evpn-mpls-mh enable |
Enable hardware-profile filter EVPN-MPLS-MH |
|
(config)#evpn mpls multihoming enable |
Enable Multihoming |
|
(config)#evpn esi hold-time 60 |
Delay timer for ESI to come up before enabling evpn |
|
(config)#commit |
Commit the transaction |
PE2: Interface Configuration Network Side
|
(config)#interface xe5 |
Enter the Interface mode for xe5. |
|
(config-if)#ip address 10.255.128.24/31 |
Configure IP address on the interface. |
|
(config-if)#enable-ldp ipv4 |
Enable LDP on the physical interface |
|
(config-if)#label-switching |
Enable label switching on the interface. |
|
(config-if)#exit |
Exit interface mode |
|
(config-if)#commit |
Commit the transaction. |
For RSVP Configuration refer RSVP-TE Configuration.
PE2: OSPF Configuration
|
(config)#router ospf 100 |
Enter the Router OSPF mode |
|
(config-router)#ospf router-id 10.143.73.3 |
Router-ID configurations |
|
(config-router)#network 10.143.73.3/32 area 0.0.0.0 |
Advertise loopback address in OSPF |
|
(config-router)#network 10.255.128.24/31 area 0.0.0.0 |
Advertise network address in OSPF |
|
(config-router)#exit |
Exit Router OSPF mode and return to Configure mode |
|
OcNOS(config)#commit |
Commit candidate configuration to be running configuration |
PE2: BGP Configuration
|
(config)#router bgp 65010 |
Enter the Router BGP mode, ASN: 65010 |
|
(config-router)#neighbor 10.143.73.1 remote-as 65010 |
Configuring Neighbor as iBGP neighbor |
|
(config-router)#neighbor 10.143.73.1 update-source lo |
Source of routing updates as loopback |
|
(config-router)#neighbor 10.143.73.4 remote-as 65010 |
Configuring Neighbor as iBGP neighbor |
|
(config-router)#neighbor 10.143.73.4 update-source lo |
Source of routing updates as loopback |
|
(config-router)#address-family l2vpn evpn |
Entering into address family mode as EVPN |
|
(config-router-af)#neighbor 10.143.73.1 activate |
Enabling EVPN Address family for neighbor |
|
(config-router-af)#neighbor 10.143.73.4 activate |
Enabling EVPN Address family for neighbor |
|
(config-router-af)#exit |
Exiting of Address family mode |
|
(config-router)#commit |
Commit the transaction. |
PE2: MAC VRF Configuration
|
(config)#mac vrf vrf2 |
Enter VRF mode |
|
(config-vrf)#rd 10.143.73.3:1700 |
Configuring Route-Distinguisher value 10.143.73.3:1700 |
|
(config-vrf)#route-target both 1700:1700 |
Configuring import and export value as 1700:1700 Support: route-target export route-target import |
|
(config-vrf)#exit |
Exiting VRF Mode |
|
(config)#mac vrf vpls1001 |
Enter VRF mode |
|
(config-vrf)#rd 10.143.73.3:1001 |
Configuring Route-Distinguisher value 10.143.73.3:1001 |
|
(config-vrf)#route-target both 1001:1001 |
Configuring import and export value as 1001:1001 |
|
(config-vrf)#exit |
Exiting VRF Mode |
|
(config)#commit |
Commit the transaction. |
PE2: EVPN-VPWS (ELINE) and MAC VRF Mapping
|
(config)#evpn mpls id 1800 xconnect target-mpls-id 1700 |
Configure the EVPN-VPWS identifier with source identifier 1800 and target identifier 1700 |
|
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrf2 |
Mapping vrf "vrf2" to EVPN-VPWS identifier |
|
(config-evpn-mpls)#commit |
Commit the transaction. |
|
(config-evpn-mpls)#exit |
Exit the EVPN MPLS mode and return to the configure mode. |
PE2:EVPN-VPWS (ELINE) Access Port Configuration
|
(config)#interface po90 |
Enter the Interface mode for po90. |
|
(config-if)#load-interval 30 |
Load interval setting. |
|
(config-if)#evpn multi-homed system-mac 0000.aaaa.bbbc |
Configure ESI on a link on which Multi homed CE is connected. |
|
(config-if)#interface po90.1700 switchport |
Creating L2 sub interface of Dynamic LAG po90. |
|
(config-if)#encapsulation dot1q 1700 |
Setting Encapsulation to dot1q with VLAN ID 1700. Supported Encapsulation: dot1ad, dot1q, untagged, default |
|
(config-if)#access-if-evpn |
Entering Access mode for EVPN MPLS ID configuration. |
|
(config-access-if)#map vpn-id 1800 |
Map vpn-id 1800 to interface po90.1700 (VPWS). |
|
(config-access-if)#exit |
Exiting out of access interface mode. |
PE2: EVPN-VPLS (ELAN) and MAC VRF Mapping
|
(config)#evpn mpls id 3000 |
Configure the EVPN-VPLS identifier with identifier 3000. |
|
(config-evpn-mpls)#host-reachability-protocol evpn- bgp vpls1001 |
Mapping vrf "vpls1001" to EVPN-VPLS identifier. |
|
(config-evpn-mpls)#commit |
Commit the transaction. |
|
(config-evpn-mpls)#exit |
Exit the EVPN MPLS mode and return to the configure mode. |
PE2: EVPN-VPLS (ELAN) Access Port Configuration
|
(config-if)#interface po90.300 switchport |
Enter the Interface mode for po90. |
|
(config-if)#encapsulation dot1q 3000 |
Setting Encapsulation to dot1q with VLAN ID 3000. Supported Encapsulation: dot1ad, dot1q, untagged, default |
|
(config-if)#access-if-evpn |
Entering Access mode for EVPN MPLS ID configuration |
|
(config-access-if)#map vpn-id 3000 |
Map vpn-id 3000 to interface po90.300 (VPLS) |
|
(config-access-if)#exit |
Exiting out of Access if mode. |
|
(config-if)#interface ce52 |
Enter the Interface mode for ce52. |
|
(config-if)#channel-group 90 mode active |
Putting interface ce52 in Dynamic LAG po90 |
|
(config-access-if)#commit |
Commit candidate configuration to be running configuration |
PE3: Loopback Interface
|
#configure terminal |
Enter configure mode. |
|
(config)#interface lo |
Enter the Interface mode for the loopback interface. |
|
(config-if)#ip address 10.143.73.4/32 secondary |
Configure IP address on loopback interface. |
|
(config-if)#exit |
Exit interface mode |
|
(config)#commit |
Commit the transaction. |
PE3: Global LDP
|
(config)#router ldp |
Enter the Router LDP mode. |
|
(config-router)#router-id 10.143.73.4 |
Set the router ID to IP address 10.143.73.4 |
|
(config-router)#transport-address ipv4 10.143.73.4 |
Configure the transport address for IPV4 (for IPV6 use ipv6) to be used for a TCP session over which LDP will run. It is preferable to use the loopback address as the transport address. |
|
(config-router)#targeted-peer ipv4 10.143.73.1 |
Configure targeted peer. |
|
(config-router-targeted-peer)# targeted-peer ipv4 10.143.73.3 |
Configure targeted peer. |
|
(config-router-targeted-peer)#exit |
Exit-targeted-peer-mode |
|
(config-router)#exit |
Exit from router LDP mode |
|
(config-router)#commit |
Commit the transaction. |
PE3: Global EVPN MPLS Command
|
(config)#evpn mpls enable |
Enable EVPN MPLS |
|
(config)#commit |
Commit candidate configuration to be running configuration |
|
(config)#evpn mpls vtep-ip-global 10.143.73.4 |
Configuring VTEP global IP to loopback IP |
|
(config)#hardware-profile filter evpn-mpls-mh enable |
Enable hardware-profile filter EVPN-MPLS-MH |
|
(config)#evpn mpls multihoming enable |
Enable Multihoming |
|
(config)#evpn esi hold-time 60 |
Delay timer for ESI to come up before enabling evpn |
|
(config)#commit |
Commit the transaction. |
PE3: Interface Configuration Network Side
|
(config)#interface xe7 |
Enter the Interface mode for xe7. |
|
(config-if)#ip address 10.255.128.36/31 |
Configure IP address on the interface. |
|
(config-if)#enable-ldp ipv4 |
Enable LDP on the physical interface |
|
(config-if)#label-switching |
Enable label switching on the interface |
|
(config-if)#exit |
Exit interface mode |
For RSVP Configuration refer RSVP-TE Configuration
PE3: OSPF Configuration
|
(config)#router ospf 100 |
Enter the Router OSPF mode |
|
(config-router)#ospf router-id 10.143.73.4 |
Router-ID configurations |
|
(config-router)#network 10.143.73.4/32 area 0.0.0.0 |
Advertise loopback address in OSPF |
|
(config-router)#network 10.255.128.36/31 area 0.0.0.0 |
Advertise network address in OSPF |
|
(config-router)#exit |
Exit Router OSPF mode and return to Configure mode |
|
(config)#commit |
Commit the transaction |
PE3: BGP Configuration
|
(config)#router bgp 65010 |
Enter the Router BGP mode, ASN: 65010 |
|
(config-router)#neighbor 10.143.73.1 remote-as 65010 |
Configuring Neighbor as iBGP neighbor |
|
(config-router)#neighbor 10.143.73.1 update-source lo |
Source of routing updates as loopback |
|
(config-router)#neighbor 10.143.73.3 remote-as 65010 |
Configuring Neighbor as iBGP neighbor |
|
(config-router)#neighbor 10.143.73.3 update-source lo |
Source of routing updates as loopback |
|
(config-router)#address-family l2vpn evpn |
Entering into address family mode as EVPN |
|
(config-router-af)#neighbor 10.143.73.1 activate |
Enabling EVPN Address family for neighbor |
|
(config-router-af)#neighbor 10.143.73.3 activate |
Enabling EVPN Address family for neighbor |
|
(config-router-af)#exit |
Exiting of Address family mode |
|
(config-router)#commit |
Commit the transaction |
PE3: MAC VRF Configuration
|
(config)#mac vrf vrf2 |
Enter VRF mode |
|
(config-vrf)#rd 10.143.73.4:1700 |
Configuring Route-Distinguisher value 10.143.73.4:1700 |
|
(config-vrf)#route-target both 1700:1700 |
Configuring import and export value as 1700:1700 |
|
(config-vrf)#exit |
Exiting VRF Mode |
|
(config)#mac vrf vpls1001 |
Enter VRF mode |
|
(config-vrf)#rd 10.143.73.4:1001 |
Configuring Route-Distinguisher value 10.143.73.4:1001 |
|
(config-vrf)#route-target both 1001:1001 |
Configuring import and export value as 1001:1001 |
|
(config-vrf)#exit |
Exiting VRF Mode |
|
(config)#commit |
Commit the transaction |
PE3: EVPN-VPWS (ELINE) and MAC VRF Mapping
|
(config)#evpn mpls id 1800 xconnect target-mpls-id 1700 |
Configure the EVPN-VPWS identifier with source identifier 1800 and target identifier 1700 |
|
(config-evpn-mpls)#host-reachability-protocol evpn-bgp vrf2 |
Mapping vrf "vrf2" to EVPN-VPWS identifier |
|
(config-evpn-mpls)#commit |
Commit the transaction. |
|
(config-evpn-mpls)#exit |
Exit the EVPN MPLS mode and return to the configure mode. |
PE3:EVPN-VPWS (ELINE) Access Port Configuration
|
(config)#interface po90 |
Enter the Interface mode for po90. |
|
(config-if)#load-interval 30 |
Load interval setting. |
|
(config-if)#evpn multi-homed system-mac 0000.aaaa.bbbc |
Configure ESI on a link on which Multi homed CE is connected. |
|
(config-if)#interface po90.1700 switchport |
Creating L2 sub interface of Dynamic LAG po90. |
|
(config-if)#encapsulation dot1q 1700 |
Setting Encapsulation to dot1q with VLAN ID 1700 Supported Encapsulation: dot1ad, dot1q, untagged, default |
|
(config-if)#access-if-evpn |
Entering Access mode for EVPN MPLS ID configuration. |
|
(config-access-if)#map vpn-id 1800 |
Map vpn-id 1800 to Dynamic LAG sub interface with po90.1700 (VPWS) |
|
(config-access-if)#exit |
Exiting out of access interface mode. |
PE3: EVPN-VPLS (ELAN) and MAC VRF Mapping
|
(config)#evpn mpls id 3000 |
Configure the EVPN-VPLS identifier with identifier 3000. |
|
(config-evpn-mpls)#host-reachability-protocol evpn- bgp vpls1001 |
Mapping vrf "vpls1001" to EVPN-VPLS identifier. |
|
(config-evpn-mpls)#commit |
Commit the transaction. |
|
(config-evpn-mpls)#exit |
Exit the EVPN MPLS mode and return to the configure mode. |
PE3: EVPN-VPLS (ELAN) Access Port Configuration
|
(config-if)#interface po90.300 switchport |
Enter the Interface mode for po90. |
|
(config-if)#encapsulation dot1q 3000 |
Setting Encapsulation to dot1q with VLAN ID 3000. Supported Encapsulation: dot1ad, dot1q, untagged, default |
|
(config-if)#access-if-evpn |
Entering Access mode for EVPN MPLS ID configuration |
|
(config-access-if)#map vpn-id 3000 |
Map vpn-id 3000 to interface po90.300 (VPLS) |
|
(config-access-if)#exit |
Exiting out of Access if mode. |
|
(config-if)#interface ce50 |
Enter the Interface mode for ce50. |
|
(config-if)#channel-group 90 mode active |
Putting interface xe2 in Dynamic LAG po90 |
|
(config-access-if)#commit |
Commit candidate configuration to be running configuration |
