RSVP Graceful Restart Configuration

Overview

The RSVP-TE graceful restart enables routers to maintain MPLS forwarding state when a link or node failure occurs. In a link failure, control communication is lost between two nodes, however, the nodes do not lose their control or forwarding state. RSVP Graceful restart (GR) is one of the fault-handling mechanism, that protects the forwarding state of the node during failure and helps to reinstate the previous state when the node has recovered.

Topology

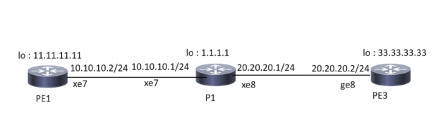

Figure 94. RSVP Graceful Restart
