RADIUS Authorization Configuration

Benefits

Based on the privilege level received from the RADIUS server user role is determined.

Prerequisites

RADIUS server process must be up and running.

Configuration

Topology

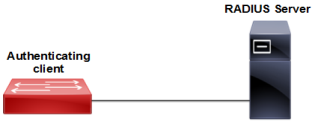

Following is the RADIUS client and server network topology.

Figure 2. RADIUS Server Client Configuration

IPv4 Address

RADIUS server address is configured in IPv4 address format.

RADIUS Client (Host)

(config)#radius-server login host 10.12.33.211 vrf management seq-num 1 key 0 testing123	Specify the radius server ipv4 address to be configured with shared local key for management vrf. The same key should be present on the server config file.
(config)#radius-server login host 1.1.1.2 seq-num 1 key 0 testing123	Specify the radius server ipv4 address to be configured with shared local key for default vrf. The same key should be present on the server config file.
(config)#aaa authentication login default vrf management group radius	Enable authentication for radius server configured for management VRF. Authorization is also enabled by default.
(config)#aaa authentication login console group radius	Enable authentication for radius server . Authorization is also enabled by console
(config)#aaa authentication login default vrf management group radius local	Enable authentication for radius server and fallback to local configured for management VRF. Authorization is also enabled by default
(config)#aaa authentication login console group radius local	Enable authentication for radius server and fallback to local configured for default vrf. Authorization is also enabled by default

Specifies privilege level in radius server configuration file. The RADIUS client fetch the network operator privilege level from this file. The Privilege level range is between 0-15.

Table 8. Role/privilege level mapping
Role	Privilege level
Network-admin	15
Network engineer	14
RBAC-customized-role	13
Network operator	1 to 12
Network user	0 or any other values (>15 or negative values or any character)

Validation

To verify the RADIUS authorization process, login from the host machine to Host IP with the authenticating user credentials and provide a RADIUS server password.

Execute following show commands to verify the Radius authorization status.

Copy

OcNOS#sh running-config aaa
aaa authentication login default vrf management group radius
aaa authentication login console group radius
aaa authentication login default vrf management group radius local
aaa authentication login console group radius local

OcNOS#sh running-config radius
radius-server login host 10.12.33.211 vrf management seq-num 1 key 7 0x67efdb4ad9d771c3ed8312b2bc74cedb

radius-server login host 1.1.1.1  seq-num 1 key 7 0x67efdb4ad9d771c3ed8312b2bc74cedb

OcNOS#sh radius-server vrf management
timeout value: 5

Total number of servers:1

VRF: management
Following RADIUS servers are configured:
Radius Server                           : 10.12.33.211 (*)
   Sequence Number                      : 1
   available for authentication on port : 1812
   available for accounting on port     : 1813
   RADIUS shared secret                 : ********
   Failed Authentication count          : 3
   Successful Authentication count      : 13
   Failed Connection Request            : 3
   Last Successful authentication       : 2023 November 30, 06:25:07

OcNOS#sh radius-server vrf management
timeout value: 5

Total number of servers:1

VRF: management
Following RADIUS servers are configured:
Radius Server                           : 1.1.1.1 (*)
   Sequence Number                      : 1
   available for authentication on port : 1812
   available for accounting on port     : 1813
   RADIUS shared secret                 : ********
   Failed Authentication count          : 3
   Successful Authentication count      : 10
   Failed Connection Request            : 0
   Last Successful authentication       : 2023 November 30, 06:28:07


OcNOS#sh users
Current user          : (*).  Lock acquired by user : (#).
CLI user              : [C].  Netconf users         : [N].
Location : Applicable to CLI users.
Session  : Applicable to NETCONF users.

Line        User          Idle         Location/Session  PID   TYPE   Role
(*) 0 con 0 [C]ocnos      0d00h00m     ttyS0             5251  Local  network-admin
130 vty 0   [C]ocnos      0d00h00m     pts/0             5288  Remote network-user
131 vty 1   [C]abc        0d00h00m     pts/1             5340  Remote network-engineer
132 vty 2   [C]ipi        0d00h00m     pts/2             5350  Remote network-operator

IPv6 Address

RADIUS server address is configured in IPv6 address.

RADIUS Client (Host)

OcNOS(config)#radius-server login host 2001:db8:100::2 vrf management seq-num 1 key 0 testing123	Configure radius server with IPv6 address
OcNOS(config)#aaa authentication login default vrf management group radius local	Configure AAA authentication
(config)#interface eth0	Navigate to the interface mode
(config-if)#ipv6 address 2001:db8:100::5/64	Configure IPv6 address on the eth0 interface
(config-if)#exit	Exit interface configure mode
(config)#commit	Commit the configuration
(config)#exit	Exit configure mode

Validation

To verify the RADIUS authorization process, login from the host machine to Host IP with the authenticating user credentials and provide a RADIUS server password.

Execute following show commands to verify the Radius authorization status.

Copy

#show running-config radius
radius-server login host 2001:db8:100::2 vrf management seq-num 1 key 7 0x67efdb4ad9d771c3ed8312b2bc74cedb

#show running-config aaa
aaa authentication login default vrf management group radius

#show ipv6 interface eth0 brief
Interface        IPv6-Address                              Admin-Status
eth0             2001:db8:100::5fe80::218:23ff:fe30:e6ba   [up/up]

Implementation Examples

Following is an example for radius-server configuration file:

Copy

ipi Cleartext-Password := "ipi123"
     Management-Privilege-Level := 12
ocnos Cleartext-Password := "ocnos"
     Management-Privilege-Level := 0
abc Cleartext-password :="AC123"
     Management-Privilege-Level := 14
