SNMP Informs with IPv6 Address over User Defined VRF

Snmpwalk is performed by using IPv6 address. SNMP trap server is configured on the Router with IPv6 address.

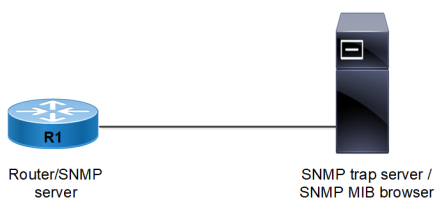

Topology

Shows the sample configuration of SNMP trap server.

Figure 49. SNMP trap server topology

R1

#configure terminal	Enter configure mode.
(config)#ip vrf snmp-vrf	Creates a user-defined vrf called snmp-vrf
(config)#commit	Commit the candidate configuration to the running configuration
(config)#snmp-server view all .1 included vrf snmp-vrf	Configure SNMP server view
(config)#snmp-server view test1 1.3.6.1 included vrf snmp-vrf	Configure SNMP server view
(config)# snmp-server user newv3user auth sha AuthNewPass@123 priv aes PrivNewPass@123 vrf snmp-vrf	Configure SNMP server user
(config)#snmp-server community test group network-operator vrf snmp-vrf	Configure SNMP server community
(config)#snmp-server community test1 group network-admin vrf snmp-vrf	Configure SNMP server community
(config)# snmp-server host 8901:DB8:0:1::1 informs version 3 auth newv3user udp-port 60000 vrf snmp-vrf host-vrf snmp-vrf	Configure SNMP informs server with IPV6 address from a user-defined VRF Virtual Routing and Forwarding
(config)#interface xe0.6	Navigate to the interface mode
(config-if)#ipv6 address 8901:db8:0:1::2/64	Configure IPv6 address on the xe0.6 sub vlan interface
(config-if)#exit	Exit interface configure mode
(config)#commit	Commit the candidate configuration to the running configuration
(config)#exit	Exit configure mode

Validation

Below is the SNMP configuration in Router node:

Perform snmpwalk as mentioned below with IPv6 address using SNMPv3

Perform snmpwalk as mentioned below with IPv6 address using SNMPv2

Perform snmpwalk as mentioned below with IPv6 address using SNMPv1

As mentioned above, perform link down and link up of any interface in Router node. Check that SNMP trap is sent.

SYSLOG MESSAGES OVER SNMP TRAPS

Topology

Shows the sample configuration of SNMP trap server.

R1

#configure terminal	Enter configure mode.
(config)# snmpserver enable traps syslog	Enable sending syslog messages over SNMP
(config)# logging snmp-traps 7	Configure severity to select syslog messages sent over the SNMP
(config)# logging remote facility local4	Configure facility to select syslog messages sent over SNMP
(config)#snmp-server community test group network-operator vrf snmp-vrf	Configure SNMP server community
(config)# snmp-server host 8901:DB8:0:1::1 informs version 3 auth newv3user udp-port 60000 vrf snmp-vrf host-vrf snmp-vrf	Configure SNMP informs server with IPv4 address from a user-defined VRF
(config)#interface xe0.6	Navigate to the interface mode
(config-if)#ipv6 address 172.18.19.21/64	Configure IPv6 address on the xe0.6 sub vlan interface
(config-if)#exit	Exit interface configure mode
(config)#commit	Commit the candidate configuration to the running configuration
(config)#exit	Exit configure mode

Validation

Following is the SNMP configuration in Router node:

#show running-config snmp

snmp-server view all .1 included vrf snmp-vrf

snmp-server community test group network-operator vrf snmp-vrf

snmp-server host 172.18.19.20 informs version 2c test udp-port 5555 vrf snmp-vrf host-vrf snmp-vrf

snmp-server enable snmp vrf snmp-vrf

snmp-server enable traps link linkDown

snmp-server enable traps link linkUp

snmp-server enable traps link include-interface-name

snmp-server enable traps vxlan

snmp-server enable traps pwdelete

snmp-server enable traps pw

snmp-server enable traps mpls

snmp-server enable traps mplsl3vpn

snmp-server enable traps snmp authentication

snmp-server enable traps ospf

snmp-server enable traps bgp

snmp-server enable traps ospf6

snmp-server enable traps vrrp

snmp-server enable traps rsvp

snmp-server enable traps rib

snmp-server enable traps isis

snmp-server enable traps pim

snmp-server enable traps syslog

#show ipv6 interface xe0.6 brief

Interface IP-Address Admin-Status Link-Status

xe0.6 172.18.19.21 up up

Perform a config-sync check from node and listen to the SNMP traps on the host via tcpdump:

S9600-28DX-1-5B#debug cml enable all

S9600-28DX-1-5B#cml config-sync check

2025 Feb 14 05:24:32 : S9600-28DX-1-5B : CMLSH : INFO : [CML_5]: Checking DB, this may take some time, please wait...

# tcpdump -i any -n port 5555

tcpdump: verbose output suppressed, use -v or -vv for full protocol decode

listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes

04:35:50.714406 IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP User Datagram Protocol, length 268

04:35:50.714461 ethertype IPv4, IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP, length 268

04:35:50.714461 IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP, length 268

04:35:50.812648 ethertype IPv4, IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP, length 268

04:35:50.812648 IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP, length 268

04:35:50.813292 ethertype IPv4, IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP, length 268

04:35:50.813292 IP 172.18.19.21.37155 > 172.18.19.20.5555: UDP, length 268

SNMP Traps Through different VRFs

From OcNOS 6.6.0 release onwards, SNMP traps can sent out through different VRFs.

The following example demonstrates that SNMP is configured in the management VRF, but traps can be sent from both the management and user_vrf1 VRFs. However, SNMP walk/get operations can only be performed on the management VRF.

#configure terminal	Enter configure mode.
(config)#ip vrf user_vrf1	Creates a user-defined vrf called user_vrf1
(config)#snmp-server view all .1 included vrf management	Configure SNMP server view
(config)#snmp-server enable snmp vrf management	Enable SNMP on management VRF
(config)#snmp-server community RegularTest group network-operator vrf management	Configure SNMP community
(config)#snmp-server location vrf management "Ottawa"	Configure location information
(config)#snmp-server contact vrf management "test@ipinfusion.com +1 819 776 6066"	Configure contact information
(config)#snmp-server host 172.29.7.144 traps version 2c RegularTest udp-port 3062 vrf management host-vrf management	Configure SNMP host on management VRF
(config)#snmp-server host 172.29.8.144 traps version 2c RegularTest udp-port 3062 vrf management host-vrf user_vrf1	Configure SNMP host on user-defined vrf user_vrf1

Similarly, SNMP service can be enabled on any one VRF, while the SNMP host can be configured on another VRF. SNMP traps/informs can be sent from the VRF configured for the host, but SNMP walk/get operations can only be performed on the VRF where the SNMP service is enabled. This applies to combinations of user-defined VRFs, the default VRF, and the management VRF.

Validation

#show running-config snmp

snmp-server view all .1 included vrf management

snmp-server community RegularTest group network-operator vrf management

snmp-server host 172.29.7.144 traps version 2c RegularTest udp-port 3062 vrf management host-vrf management

snmp-server host 172.29.8.144 traps version 2c RegularTest udp-port 3062 vrf management host-vrf user_vrf1

snmp-server location vrf management "Ottawa"

snmp-server contact vrf management "test@ipinfusion.com +1 819 776 6066"

snmp-server enable snmp vrf management

snmp-server enable traps link linkDown

snmp-server enable traps link linkUp

#show snmp host

---------------------------------------------------------------------------------------------------------------

Host Port Version Level Type SecName VRF

---------------------------------------------------------------------------------------------------------------

172.29.7.144 3062 2c noauth trap RegularTest management

172.29.8.144 3062 2c noauth trap RegularTest user_vrf1
