sFlow Sample Packet Ingress and Egress Interface

This section provides information on sFlow Sample Packet Ingress and Egress Interface Indexes. Both ingress and egress interface indexes for a sampled packet are included in sFlow, resulting in more accurate data and enhanced tracing of packet paths. Input and output port information in the samples generated by sFlow feature are both included and it impacts only the flow sample, and not the counter sample.

The packets flowing via VLAN, MPLS, or VxLAN report the physical member interfaces.

Output Interface Reporting during Ingress Flow Sampling

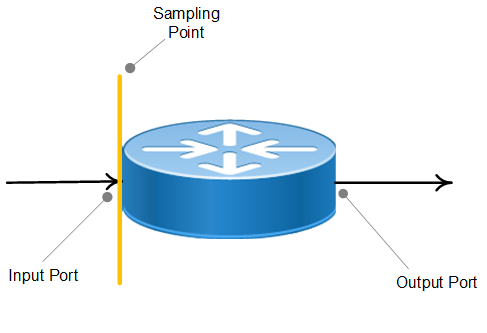

Figure 56. Output port report during ingress flow sampling

Table 51. Ingress Sampling Direction and sFlow Output Mapping

Topology	Sampling Direction	Packet Destination	sFlow Output ifindex
VLAN	Ingress	L2 interface	L2 interface index
L3 interface	Ingress	L3 interface	L3 interface index
Dynamic/Static LAG	Ingress	PO/SA interface	PO/SA interface index
VPNv4 (l3VPN)	Ingress	Tunnel Interface	L3 Interface Index
Sub-interface	Ingress	Sub-interface	Parent L3 interface ifindex
VxLAN	Ingress	Tunnel Interface	L3 interface index

Input Interface Reporting during Egress Flow Sampling

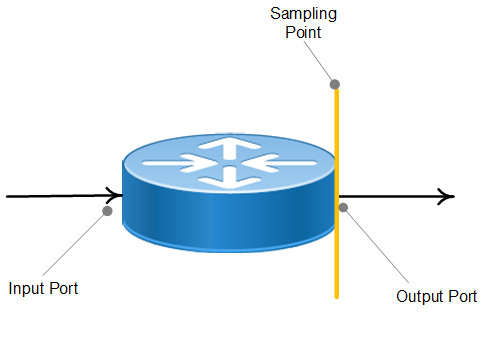

Figure 57. Input port report during egress flow sampling

Table 52. Egress Sampling Direction and sFlow Input Mapping

Topology	Sampling Direction	Packet Destination	sFlow Output ifindex
VLAN	Egress	L2 interface	L2 interface index
L3 interface	Egress	L3 interface	L3 interface index
Dynamic/Static LAG	Egress	PO/SA interface	PO/SA interface index
VPNv4 (l3VPN)	Egress	Tunnel Interface	L3 interface Index
Sub-interface	Egress	Sub-interface	Parent L3 interface ifindex
VxLAN	Egress	Tunnel Interface	L3 interface index
